Tupolev Tu-214

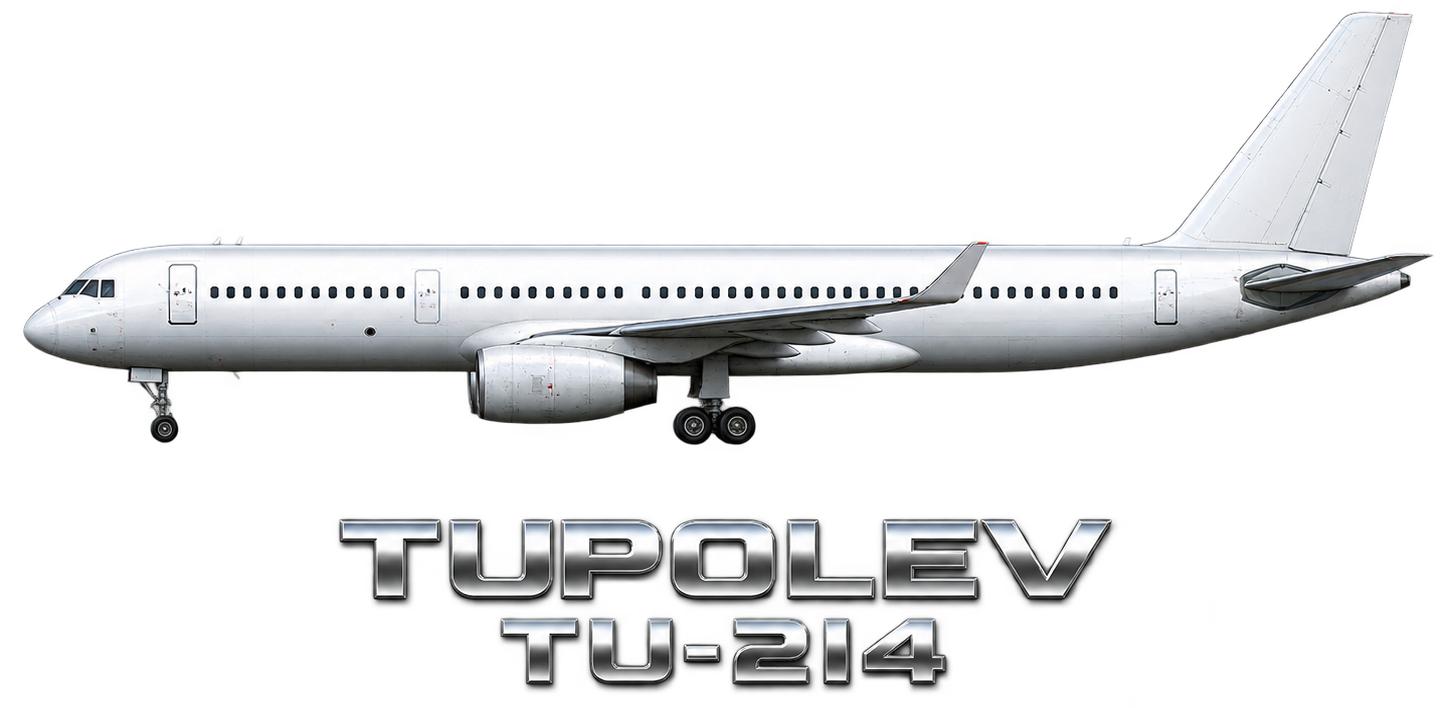

Illustrative image; it may differ from the actual aircraft.The Tu-214 is also a variation of the Tu-204 first flown on 21 March 1996. It is technically a Tu-204-200, one of the differences being that it is built by a different factory. Planes designated Tu-204 are produced in Ulyanovsk by Aviastar-SP; Tu-214 in Kazan by the Kazan Aircraft Production Association (KAPO). Both factories are independent from the Tupolev design bureau and have some control over the design of the variant they produce. The main difference is a full-size main door at the left side of the fuselage just before the wing. The Tu-204 has two main doors and two emergency doors; the Tu-214 has three doors and one emergency door. The Tu-214 is essentially a higher gross weight variant of the Tu-204, being fitted with extra fuel tanks and structural adjustments to deal with the heavier gross weight.
Specifications
Figures for the Tu-214 variant, the most representative of the family
The type first flew in 1996 (30 years ago) · About 90 units built · Still in production
Figures for the type, not for this particular aircraft: each variant and each configuration changes something. They are shown in both systems used in aviation.
The story of the type
For this reason, the Russian government prefers to use it as the platform upon which all further modifications for the 'Special Mission' variants will be based. Some of the special mission variants are claimed to be capable of a non-stop 10,000-kilometre flight range.
As of July 2018, a total of three Tupolev Tu-214 aircraft were in airline service with Rossiya.
In March 2022, CEO of Rostec Sergey Chemezov declared a possibility to relaunch big production of Tu-214 due to International sanctions during the Russo-Ukrainian War. On 6 April 2022, Yuri Slusar announced the United Aircraft Corporation (UAC) had already started production of 20 Tu-214s to replace Russia's fleet of Boeing and Airbus passenger aircraft.
On 16 August 2022, United Aircraft Corporation announced plans to increase Tupolev Tu-214 production to at least 10 to 12 aircraft per year, with the aim to produce 70 Tupolev Tu-214 by 2030. It was said the first Tu-214 for commercial flights expected to appear in 2024, then delayed to 2025, but later that year in November, a 100% Russian-made prototype had its maiden flight as a testbed. The changes were certified by Rosaviatsiya in December 2025.
Tu-214ON
The Tu-214ON is an observation version of the Tu-204-200, equipped for Treaty on Open Skies missions and built by Kazan Aircraft Production Association. Vega Radio Engineering Corporation was contracted for the development of airborne surveillance system, ground-based complex and other mission equipment for the aircraft. It is equipped with one A-84ON panoramic camera, one AK-111 topographic camera and two perspective AK-112 digital aerial cameras to capture high-resolution aerial photography. Two video cameras, a Raduga infrared thermographic camera and Ronsard side looking airborne radar (SLAR) are also fitted.
The first Tu-214ON (RA-64519) was demonstrated at the MAKS-2011 international air show in Moscow. It performed its first test flight on 1 June 2011, which was followed by a series of 24 flights by December 2011. The Ministry of Defence of the Russian Federation conducted state tests to verify the air and ground equipment of the Tu-214ON aircraft in April 2013. The jet was delivered to the Russian Defence Ministry on 22 August 2013. The second airliner (RA-64525) made its first flight on 18 December 2013 and was delivered on 4 July 2014. The Tu-214ON is set to replace the Tupolev Tu-154 and Antonov An-30 aircraft in the role.
After Russia withdrew from the Treaty on Open Skies in 2021 in response to the United States's earlier withdrawal in 2020, the two Tu-214ON used for treaty observation missions have been used for military observation flights in Crimea.
Tu-214PU
Airborne command post version. Six operated for the Russian President.
Tu-214SR
Communications relay version. Five operated by Special Flight Unit Rossiya for the Russian government.
Tu-214SUS
Communications relay version for the Russian President. Two delivered.
Tu-214R
Special-mission versions of the Tu-214 commercial transport aircraft, developed under the codename 'Project 141', to replace the Il-20 ELINT platform. The aircraft are configured to carry the MRC-411 multi-intelligence payload, to include electronic intelligence (ELINT) sensors, side-looking Synthetic Aperture Radar (SAR) and other Signals Intelligence (SIGINT). In addition, the aircraft will carry multi-spectral electro-optical systems. The aircraft has conducted test flights over the Sea of Japan but the programme experienced problems in January 2013. (Jane's Defence Weekly 16 January 2013)The Tu-214R made its public debut in August 2013 at Moscow Air Show MAKS and was heralded as a platform for conducting surveillance of the U.S., in accordance with the Treaty on Open Skies, to monitor compliance with the relevant treaties.
As of January 2015, two were conducting test flights with the Russian Air Force.
In February 2016, Russia was reported to have deployed one Tu-214R to its base in Latakia, Syria.
In July 2016, two flights have been reported to have been conducted near the Latvian, Estonian and Finnish borders, with the plane (registry reported as RA-64514) conducting close approaches a few dozen kilometers of the Finnish border on 5 and 7 July.
After Syria operation, the aircraft was declared combat-ready. One plane was reportedly used against Ukraine in 2022.
Tu-214PU-SBUS
Special-purpose aircraft-control point equipped with a special onboard communication unit SBUS-214 intended for the Ministry of Defence of Russia. The aircraft is built with Russian-made components only, meeting the requirements of the state customers, and has a range of at least 7,200 km (4,500 mi). The main purpose of the aircraft is to provide additional communication capabilities to the user. The Russian MoD placed an order for two aircraft in November 2015. The first aircraft was delivered in March 2018, the second in June the same year.
Tu-214LMK
A flying laboratory based on a serial Tu-214 passenger plane (registration number RA-64507) equipped with a multifunctional flight complex LMK-214.
Variants
The Tu-204 is the basic passenger airline model, and the Tu-204C is the basic freight or cargo model. The most-used models are the -100C and the -120C.
Certified in January 1995, this initial version is powered by Soloviev (now Aviadvigatel) PS90 turbofans with 157 kN (35,300 lbf) of thrust, and uses Russian avionics in addition to its Russian engines. The Tu-204-200 is a heavier version with extra fuel for more range. Only one was built by Aviastar-SP in Ulyanovsk but has not yet been delivered (RA-64036). Now this version is only produced by KAPO in Kazan, marketed under the designation Tu-214. The Tu-204-100C and Tu-204-200C are cargo versions of the −100 and −200 respectively, fitted with a forward main deck freight door. Currently, the Tu-204-100/200 is offered with the option of an up-rated Aviadvigatel PS90A2 turbofan, which promises 40% more service between overhauls.
The Tu-204-100's maximum take-off weight (MTOW) is 103 tonnes, and its range with max payload is 4,400 kilometres (2,700 mi).
To broaden product appeal, the Tu-204-120/220 offers non-Russian avionics and engines. It is powered by two Rolls-Royce RB211-535 engines, each with thrust of 192 kN (43,100 lbf). Egypt's Cairo Aviation became the debut operator in November 1998 when it took delivery of a Tu-204-120 and its cargo version the Tu-204-120C. The Tu-204-220 and Tu-204-220C cargo version, are a higher gross weight variants of the basic Tu-204-120.
The Tu-204-120 has a maximum takeoff weight of 103 tonnes and a range with max payload of 4,500 kilometres (2,800 mi).
A shortened, longer-range and more efficient derivative of the Tu-204, the Tu-204-300 is also known as Tu-234. About six meters (20 ft) shorter than the basic Tu-204, this variant is available in two versions: the longer-ranged, heavier version, powered by Aviadvigatel PS-90A2 turbofans, has a maximum take-off weight of 107.5 metric tons and range (with 166 passengers) increased to 9,300 kilometres (5,000 nmi); and the lighter, shorter-ranged version, with a maximum take-off weight of 89 metric tons and range of 3,500 kilometres (1,900 nmi) with 166 passengers. The former Russian airline Vladivostok Air was the debut customer. This airline's aircraft are in a two-class seating configuration, with a 142-passenger capacity. Average numbers of flight hours during each 24-hour period is 9.35 hours, for year 2009. It is also operated by Air Koryo which currently operates one Tu-204-100B and one Tu-204-300. The Тu-204s operate on the Pyongyang-Beijing, Bangkok, Vladivostok, Shenyang and Kuala Lumpur routes.
This is a version of the Tu-204-300 optimized for shorter routes, featuring smaller wings and an increased cruising speed (to Mach 0.84), which makes it a competitor to the Next Generation Boeing 737. It is ETOPS rated, and fitted with a Honeywell 331-200ER APU.
The Tu-206 is a company-funded concept aircraft that, if built, would be used as a testbed for alternative fuels, specifically liquefied natural gas.
The Tu-204SM, alternatively Tu-204CM, a medium-range airliner, is an upgraded version of the Tu-204-100/300. While the Tu-204SM will retain key design and aerodynamic features of the Tu-204-100/100E/100V series, there are numerous upgrades, largely aimed at meeting the current and near-future Russian and international standards, including those of ICAO and Eurocontrol.
The new cockpit features allow the Tu-204SM to be flown by a two-pilot crew (as compared with the three-pilot arrangement of the original Tu-204 series). These features include a new computer (VSUPT-85-2040), a new flight management system (ASO-204/FMS), wide LCD displays (KSEIS-204E), head-up displays (HUD), and an automated board system maintenance and diagnostic system. The electronic flight bag concept will be implemented and all controls and displays will be in English.
The Tu-204SM will be powered by two PS-90A2 engines. The latter is significantly improved over the original PS-90A power plants. and features a unified twin-spool turbofan with a high bypass ratio.
