Dewoitine D.338

Design and development

Dewoitine began a series of three-engined airliners with the Dewoitine D.332 of 1933, of which a single example was built, which was destroyed in a crash when returning from a record-breaking journey from Paris to Saigon. This was followed by three D.333s, which were heavier than the D.332 and carried more passengers, the first of which flew in January 1935.

In 1933, work began on a derivative of the D.332 with a retractable undercarriage, the D.335, to meet the requirements of Air France and the Belgian airline SABENA, but the crash of the D.332 resulted in a redesign of the aircraft's structure being needed. Work on the D.335 was therefore suspended, with work on a new design for SABENA incorporating the required structural improvements, the D.338, beginning in 1934. Dewoitine could not meet the tight timescales required by SABENA, however, and the Belgian airline cancelled its order on 15 March 1935. Despite this setback, Emile Dewoitine decided to continue construction of the prototype D.338.

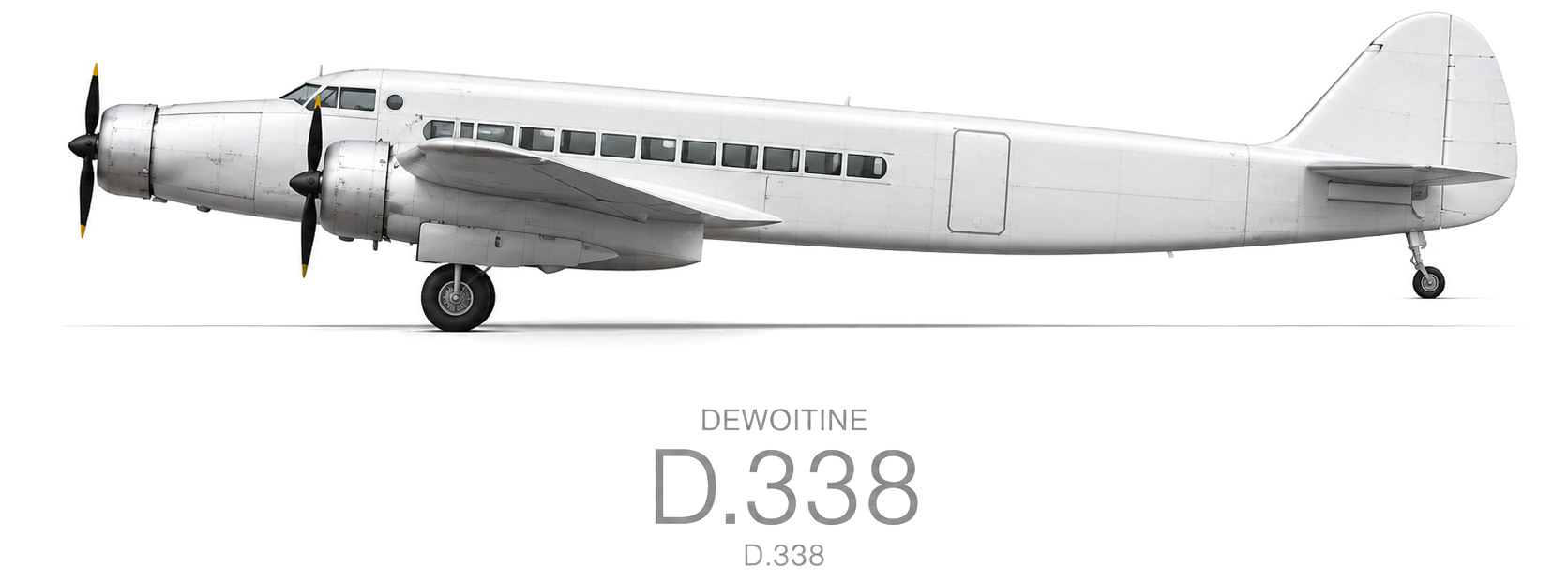

Like the D.332 and D.333, the D.338 was a low-wing cantilever monoplane of all-metal construction. It was larger and heavier than the D.333, with wingspan increasing by 0.57 m (1 ft 10 in) and length by 2.93 m (9 ft 7 in). The aircraft were powered by three 650 hp (480 kW) Hispano-Suiza 9V16/17 radial engines (license-built versions of the American Wright R-1820 Cyclone) driving constant-speed propellers. The mainwheels of the aircraft's retractable tailwheel undercarriage retracted into the engine nacelles, and were enclosed by streamlined fairings. When operating over short-range European routes, the aircraft could carry 22 passengers in two cabins. Passenger load dropped to 18 and 15 for medium range services in South America and to North Africa respectively, and to 12 passengers for services to the Far East, with six seats that could be converted into sleeping berths.

The first prototype made its maiden flight in the hands of test pilot Marcel Doret on 9 August 1935. Initially, the prototype suffered from serious problems with longitudinal stability, and the aircraft was tested with several combinations of revised tail surfaces and fuselage–wing fairings before the problems were resolved. On confirmation of the D.338s satisfactory performance, a series of orders were placed by Air France and the French government, with 31 D.338s built in total.

D.620 and D.342

The Dewoitine D.620 was designed to meet a 1933 French government requirement for an airliner to carry 30 passengers, and was powered by three Gnome-Rhône 14K radial engines rated at 865 hp (645 kW). A single prototype was built, first flying on 22 October 1935, and suffered similar stability problems to the prototype D.338. Air France were not interested in the D.620, being satisfied with the D.338, and no production followed. In 1936, Emile Dewoitine proposed the production of a more advanced derivative of the D.620 with an elliptical section monocoque fuselage and more powerful engines. The proposal was accepted by the French government, and in 1937, after Dewoitine had resigned from his company which had been nationalised as part of SNCAM, the new type was designated D.342. The D.342 prototype, powered by three 950 hp (710 kW) Gnome-Rhône 14N engines, made its maiden flight on 23 November 1938.

Operational service

The prototype D.338 received its certificate of airworthiness on 26 June 1936, and entered into service with Air France on the Paris–Lyon–Marseille route on 13 July 1936. The first four production aircraft were constructed in 1937, with 20 delivered by the end of 1938 and 29 by the end of 1939. Air France used the D.338 on routes within Europe, on services to Dakar, Senegal (via Casablanca), and on its transcontinental route to French Indochina, connecting Paris and Saigon, with the service extending to Hong Kong from August 1938. Two D.338s were sent to South America in 1939 to operate on Air France's South American services.

The outbreak of the Second World War resulted in 12 Air France D.338s being requisitioned by the French Air Force, joining two aircraft already operated by the air force for use as long-range transports.

Following the Armistice of 22 June 1940, the Vichy French government set up a civil liaison service, which continued to operate the D.338. The two aircraft operating in South America and three aircraft operating the French Indochina service were unable to return to France following the Armistice, with the two South American aircraft sold to Argentina in 1941. Several were used to operate a service from Tunis to Casablanca via Algiers. When British Commonwealth forces invaded Syria and Lebanon in June 1941, seven D.338s and the sole D.342 were used for flights to Syria. Four D.338s were destroyed during the Syria-Lebanon campaign, while a further two aircraft were captured in Beirut and used by the Free French Lignes Aériennes Militaires for services between Syria and French Equatorial Africa. The sole D.342 survived the Syria-Lebanon campaign, but was destroyed when it broke up in mid-air on 27 September 1942.
