Lockheed Constellation

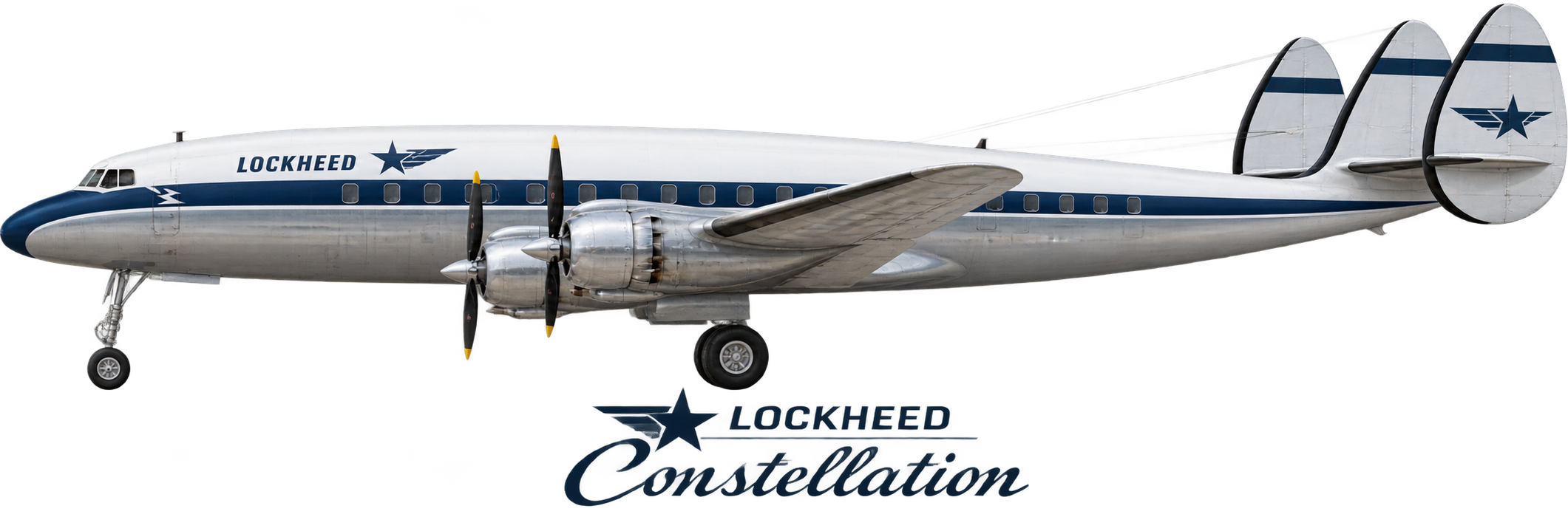

Illustrative image; it may differ from the actual aircraft.The Lockheed Constellation ("Connie") is a propeller-driven, four-engined airliner built by Lockheed Corporation starting in 1943. The Constellation series was the first civil airliner family to enter widespread use equipped with a pressurized cabin, enabling it to fly well above most bad weather, thus improving the general safety and ease of commercial passenger air travel. Several models of the Constellation series were produced, all with the distinctive triple tail and dolphin-shaped fuselage. Most were powered by four 18-cylinder Wright R-3350 Duplex-Cyclones. In total, 856 were produced between 1943 and 1958 at Lockheed's plant in Burbank, California, and used as civil airliners and as a military and civilian cargo transports. They were notably used during the Berlin and the Biafran airlifts. Three served as the presidential aircraft for Dwight D.
Specifications
Figures for the L-049 Constellation variant, the most representative of the family
The type first flew in 1943 (83 years ago) · About 856 units built · Production ended in 1958
Figures for the type, not for this particular aircraft: each variant and each configuration changes something. They are shown in both systems used in aviation.
The story of the type
Design and development
Initial studies
Lockheed had been working on the L-044 Excalibur, a four-engined, pressurized airliner, since 1937. In 1939, Transcontinental and Western Airlines (TWA), at the instigation of major stockholder Howard Hughes, requested a 40-passenger transcontinental airliner with a range of 3,500 mi (5,600 km)—well beyond the capabilities of the Excalibur design. TWA's requirements led to the L-049 Constellation, designed by Lockheed engineers, including Kelly Johnson and Hall Hibbard. Willis Hawkins, another Lockheed engineer, maintains that the Excalibur program was purely a cover for the Constellation.
Development of the Constellation
The Constellation's wing design was close to that of the Lockheed P-38 Lightning, differing mostly in size. The triple tail allowed the aircraft to fit into existing hangars, while features included hydraulically boosted controls and a deicing system used on wing and tail leading edges. The aircraft had a maximum speed over 375 mph (600 km/h), faster than that of a Japanese Zero fighter, a cruise speed of 340 mph (550 km/h), and a service ceiling of 24,000 ft (7,300 m).
According to Anthony Sampson in Empires of the Sky, Lockheed may have undertaken the intricate design, but Hughes's intercession in the design process drove the concept, shape, capabilities, appearance, and ethos. These rumors were discredited by Johnson. Howard Hughes and Jack Frye confirmed that the rumors were false in a letter dated November 1941.
Operational history
World War II
With the onset of World War II, the TWA aircraft entering production were converted to an order for C-69 Constellation military transport aircraft, with 202 aircraft intended for the United States Army Air Forces (USAAF). The first prototype (civil registration NX25600) flew on January 9, 1943, a short ferry hop from Burbank to Muroc Field for testing. Edmund T. "Eddie" Allen, on loan from Boeing, flew left seat, with Lockheed's own Milo Burcham as copilot. Rudy Thoren and Kelly Johnson were also aboard.
Lockheed proposed the model L-249 as a long-range bomber. It received the military designation XB-30, but the aircraft was not developed. A plan for a very-long-range troop transport, the C-69B (L-349, ordered by Pan Am in 1940 as the L-149), was cancelled. A single C-69C (L-549), a 43-seat VIP transport, was built in 1945 at the Lockheed-Burbank plant.
The C-69 was mostly used as a high-speed, long-distance troop transport during the war. In total, 22 C-69s were built before the end of hostilities, but seven of these never entered military service, as they were converted to civilian L-049s on the assembly line. The USAAF cancelled the remainder of the order in 1945. Some aircraft remained in USAF service into the 1960s, serving as passenger ferries for the airline that relocated military personnel, wearing the livery of the Military Air Transport Service.
Postwar use
After World War II, the Constellation came into its own as a fast civilian airliner. Aircraft already in production for the USAAF as C-69 transports were finished as civilian airliners, with TWA receiving the first on 1 October 1945. TWA's first transatlantic proving flight departed Washington, DC, on December 3, 1945, arriving in Paris on December 4 via Gander and Shannon.
TWA transatlantic service started on February 6, 1946, with a New York City-Paris flight in a Constellation. On June 17, 1947, Pan American World Airways (Pan Am) opened the first-ever scheduled round-the-world service with its L-749 Clipper America. The famous flight "Pan Am 1" operated until 1982.
https://www.wired.com/2009/06/dayintech-0617/
As the first pressurized airliner in widespread use, the Constellation helped establish affordable and comfortable air travel. Operators of Constellations included TWA, Eastern Air Lines, Pan Am, Air France, BOAC, KLM, Qantas, Lufthansa, Iberia Airlines, Panair do Brasil, TAP Portugal, Trans-Canada Air Lines (later renamed Air Canada), Aer Lingus, VARIG, Cubana de Aviación, Línea Aeropostal Venezolana, Northwest Airlines, and Avianca, the national airline of Colombia.
Records
Sleek and powerful, Constellations set many records. On April 17, 1944, the second production C-69, piloted by Howard Hughes and TWA president Jack Frye, flew from Burbank, California, to Washington, DC, a distance around 2,300 miles (3,700 km), in 6 hours and 57 minutes, representing an average speed of 331 miles per hour (533 km/h). On the return trip, the aircraft stopped at Wright Field in Ohio to give Orville Wright his last flight, more than 40 years after his historic first flight near Kitty Hawk, North Carolina. He commented that the Constellation's wingspan was longer than the distance of his first flight.
On September 29, 1957, a TWA L-1649A flew from Los Angeles to London in 18 hours and 32 minutes—about 5,420 miles (8,720 km) at 292 miles per hour (470 km/h). The L-1649A holds the record for the longest-duration, nonstop passenger flight aboard a piston-powered airliner.
Variants
The initial military versions carried the Lockheed designation of L-049; as World War II came to a close, some were completed as civilian L-049 Constellations followed by the L-149 (L-049 modified to carry more fuel tanks).
The first purpose-built passenger Constellations were the more powerful L-649 and L-749 (which had more fuel in the outer wings), L-849 (an unbuilt model to use the R-3350 turbo-compound engines adopted for the L-1049 ), L-949 (an unbuilt, high-density seating-cum-freighter type, what would come to be called a "combi aircraft").
These were followed by the L-1049 Super Constellation (with longer fuselage), L-1149 (proposal to use Allison turbine engines) and L-1249 (similar to L-1149, built as R7V-2/YC-121F), L-1449 (unbuilt proposal for L1049G, stretched 55 in (140 cm), with new wing and turbines) and L-1549 (unbuilt project to stretch L-1449 95 in (240 cm)).
The final civilian variant was the L-1649 Starliner (all new wing and L1049G fuselage).
Military versions included the C-69 and C-121 for the Army Air Forces/Air Force and the R7O R7V-1 (L-1049B) EC-121 WV-1 (L-749A) WV-2 (L-1049B) (widely known as the Willie Victor) and many variant EC-121 designations for the Navy.
Overview and history adapted from Wikipedia (CC BY-SA) · technical figures from the manufacturer’s published specifications and standard aviation references
