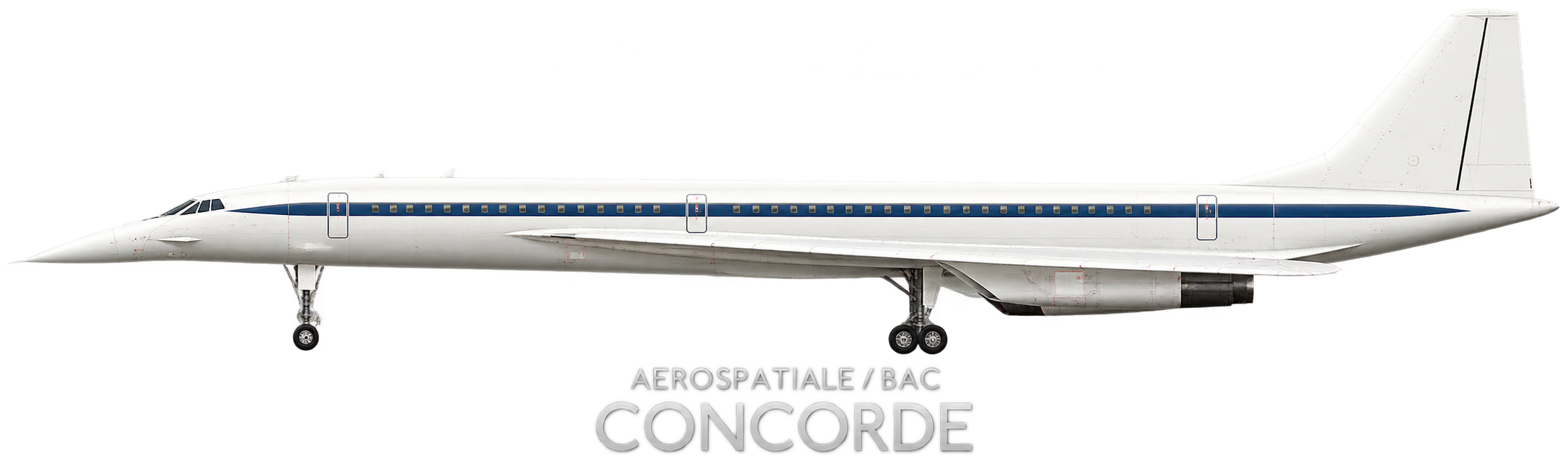

Aérospatiale-BAC Concorde

Development

Early studies

In the early 1950s, Arnold Hall, director of the Royal Aircraft Establishment (RAE), asked Morien Morgan to form a committee to study supersonic transport (SST). The group met in February 1954 and delivered their first report in April 1955. Robert T. Jones' work at NACA had demonstrated that the drag at supersonic speeds was strongly related to the span of the wing. This led to the use of short-span, thin, trapezoidal wings such as those seen on the control surfaces of many missiles, or aircraft such as the Lockheed F-104 Starfighter interceptor or the planned Avro 730 strategic bomber that the team studied. The team outlined a baseline configuration that resembled an enlarged Avro 730.

This short wingspan produced little lift at low speed, resulting in long take-off runs and high landing speeds. In an SST design, this would have required enormous engine power to lift off from existing runways, and to provide the fuel needed, "some horribly large aeroplanes" resulted. Based on this, the group considered the concept of an SST infeasible, and instead suggested continued low-level studies into supersonic aerodynamics.

Slender deltas

Soon after, Johanna Weber and Dietrich Küchemann at the RAE published a series of reports on a new wing planform, known in the UK as the "slender delta". The team, including Eric Maskell whose report "Flow Separation in Three Dimensions" contributed to an understanding of separated flow, worked with the fact that delta wings can produce strong vortices on their upper surfaces at high angles of attack. The vortex will lower the air pressure and cause lift. This had been noticed by Chuck Yeager in the Convair XF-92, but its qualities had not been fully appreciated. Weber suggested that the effect could be used to improve low-speed performance.

Küchemann and Weber's papers changed the entire nature of supersonic design. The delta had already been used on aircraft, but these designs used planforms that were not much different from a swept wing of the same span. Weber noted that the lift from the vortex was increased by the length of the wing it had to operate over, which suggested that the effect would be maximised by extending the wing along the fuselage as far as possible. Such a layout would still have good supersonic performance, but also have reasonable take-off and landing speeds using vortex generation. The aircraft would have to take off and land very "nose high" to generate the required vortex lift, which led to questions about the low-speed handling qualities of such a design.

Küchemann presented the idea at a meeting where Morgan was also present. Test pilot Eric Brown recalls Morgan's reaction to the presentation, saying that he immediately seized on it as the solution to the SST problem. Brown considers this moment as being the birth of the Concorde project.

Supersonic Transport Aircraft Committee

On 1 October 1956, the Ministry of Supply asked Morgan to form a new study group, the Supersonic Transport Aircraft Committee (STAC), to develop a practical SST design and find industry partners to build it. At the first meeting, on 5 November 1956, the decision was made to fund the development of a test-bed aircraft to examine the low-speed performance of the slender delta, a contract that eventually produced the Handley Page HP.115. This aircraft demonstrated safe control at speeds as low as 69 mph (111 km/h), about one-third that of the F-104 Starfighter.

Lift is not generated the same way at supersonic and subsonic speeds, with the lift-to-drag ratio for supersonic designs being about half that of subsonic designs. The aircraft would need more thrust than a subsonic design of the same size. Although they would use more fuel in cruise, they would be able to fly more revenue-earning flights in a given time, so fewer aircraft would be needed to service a particular route. This would remain economically advantageous as long as fuel represented a small percentage of operational costs. STAC concluded that an SST would have economic performance similar to existing subsonic types.

STAC suggested that two designs naturally fell out of their work, a transatlantic model flying at about Mach 2, and a shorter-range version flying at Mach 1.2. Morgan suggested that a 150-passenger transatlantic SST would cost about £75 to £90 million to develop, and be in service in 1970. The smaller 100-passenger short-range version would cost perhaps £50 to £80 million, and be ready for service in 1968. To meet this schedule, development would need to begin in 1960, with production contracts let in 1962. Morgan suggested that the US was already involved in a similar project, and that if the UK failed to respond, it would be locked out of an airliner market that he believed would be dominated by SST aircraft.

In 1959, a study contract was awarded to Hawker Siddeley and Bristol for preliminary designs based on the slender delta, which developed as the HSA.1000 and Bristol 198. Armstrong Whitworth also responded with an internal design, the M-Wing, for the lower-speed, shorter-range category.
