Boeing 720

Development

Shorter range 707

Boeing announced its plans to develop a new version of the 707 in July 1957. It was developed from the 707-120 to provide for short- to medium-range flights from shorter runways. The model was originally designated 707-020 before being changed to 720 at the input of United Airlines. It has four fewer frames than a 707-120 in front of the wing and one fewer aft, with a total length reduction of 8 feet 4 inches (2.54 m).

The new model was designed to a lower maximum takeoff weight with a modified wing and a lightened airframe. The wing modifications included Krueger flaps outboard of the outboard engines, lowering take-off and landing speeds—thus shortening runway length requirements. A thickened inboard leading edge section with a slightly greater sweep increased top speed over the 707-120. It had four Pratt & Whitney JT3C-7 turbojet engines producing 12,500 lbf (55.6 kN) each.

At one point in the development phase, it was known as the 707-020, then 717-020, although this was the Boeing model designation of the KC-135 and remained unused for a commercial airliner until it was applied to the MD-95, following Boeing's merger with McDonnell Douglas in 1997.

Because the aircraft systems were similar to the Boeing 707, no prototype Boeing 720 was built; any different systems were tested on the Boeing 367-80. The first 720 took its maiden flight on November 23, 1959. The type certificate for the 720 was issued on June 30, 1960. It entered service with United Airlines on July 5, 1960; 65 of the original version were built.

Further developments

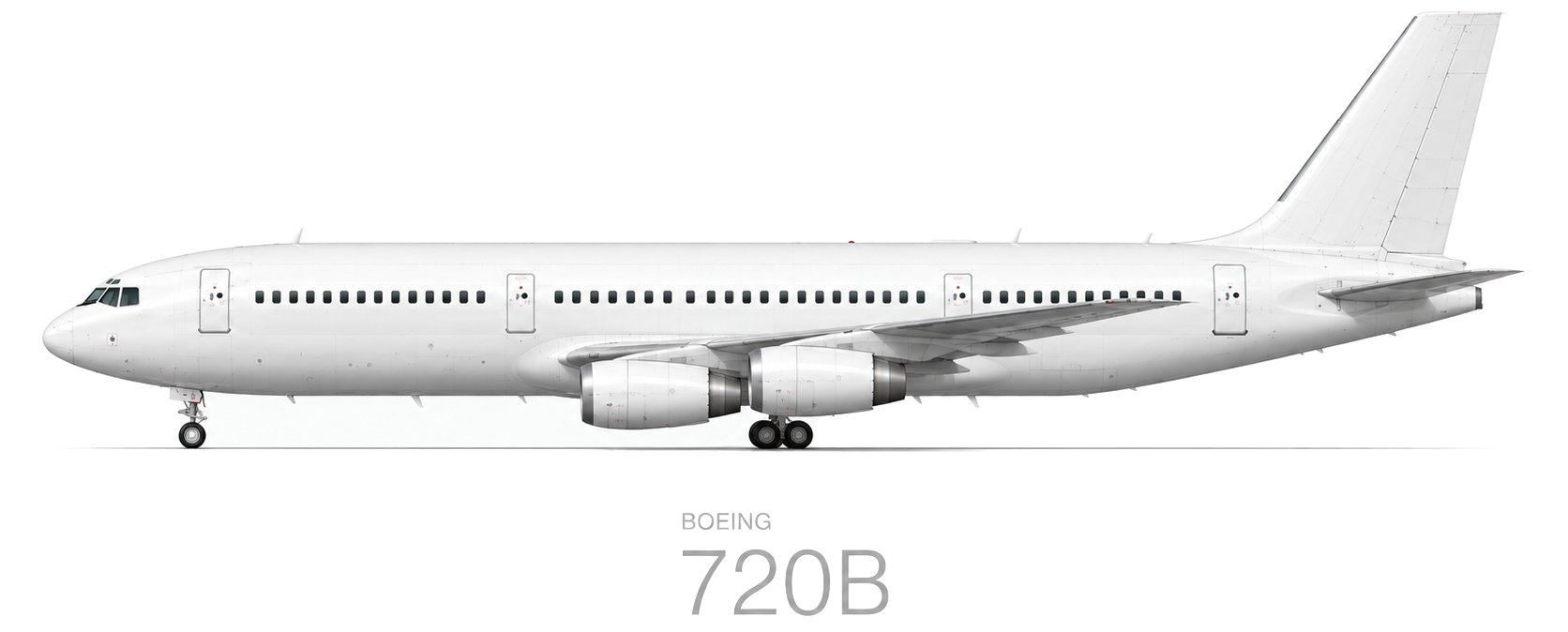

The 720B version of the 720 had JT3D turbofan engines, producing 17,000 lbf (75.6 kN) each. The JT3D engines had lower fuel consumption and higher thrust. The maximum takeoff weight for the 720B was increased to 234,000 lb (106,000 kg). The 720B first took to the skies on October 6, 1960, and received certification and entered service with American Airlines in March 1961; 89 720Bs were built, in addition to conversions of American's 10 existing 720s.

As a modification of an existing model, the 720 had minimal research and development costs, which allowed it to be successful despite few sales. The company built 154 Boeing 720s and 720Bs from 1959 to 1967. The 720's wing modification was later added on the 707-120B and on 707-120s retrofitted to the B standard.

Design

The Boeing 720 is a four-engined low-wing cantilever monoplane. Although it was similar to the Boeing 707, compared with the 707-120, it was 8 ft 4 in (2.54 m) shorter in length, and had a lighter structure through use of lighter forged metal parts and thinner fuselage skins and structures.

Fuselage

The rearmost of the 707's over-wing emergency exits was deleted on each side, which reduced passenger capacity, while two over-wing exits were an option for higher-density configurations.

Wings

The 720 uses an improved wing based on the 707 wing. The wingspan remained the same as the 707-120. For the 720, the wing was changed between the fuselage and inner engines by adding a wing root glove. This glove reduced the drag of the wing by decambering the root, which reduced the "middle effect", thereby increasing the effective local wing sweep. The wing root glove reportedly increased the drag divergence Mach number of the wing by Mach 0.02.

Engines

Though initially fitted with turbojet engines, the dominant engine for the Boeing 720 was the Pratt & Whitney JT3D, a turbofan variant of the JT3C with lower fuel consumption and higher thrust. JT3D-engined 720s had a "B" suffix; some of American's 720Bs were conversions of JT3C-powered 720s.

Like the 707, the 720/720B used engine-driven turbocompressors to supply high-pressure air for cabin pressurization. The engines could not supply sufficient bleed air for this purpose without a serious loss of thrust. The small air inlets and associated humps are visible just above the main engine inlets on the two inner engine pods of all 720s and 720Bs; the lack of the turbocompressor inlet on the outer starboard pod (number 4 engine) helps spotters distinguish 720/720Bs from most 707s, which had three turbocompressors.

Other equipment

The Boeing 720 lacked an auxiliary power unit, and relied instead on ground power and pneumatic air to power the aircraft's systems, provide air conditioning, and start the engines while on the ground. The normal practice for Boeing 720 aircraft was to start the number three (inner starboard) engine first, then disconnect ground power and air. With one engine running, bleed air from that engine could be used to provide necessary air pressure to start the other engines one by one. On the ground, with the ground starting crew at hand, all four engines were usually started with ground crew help: this was more reliable and faster.
