Lockheed 12 Electra Junior

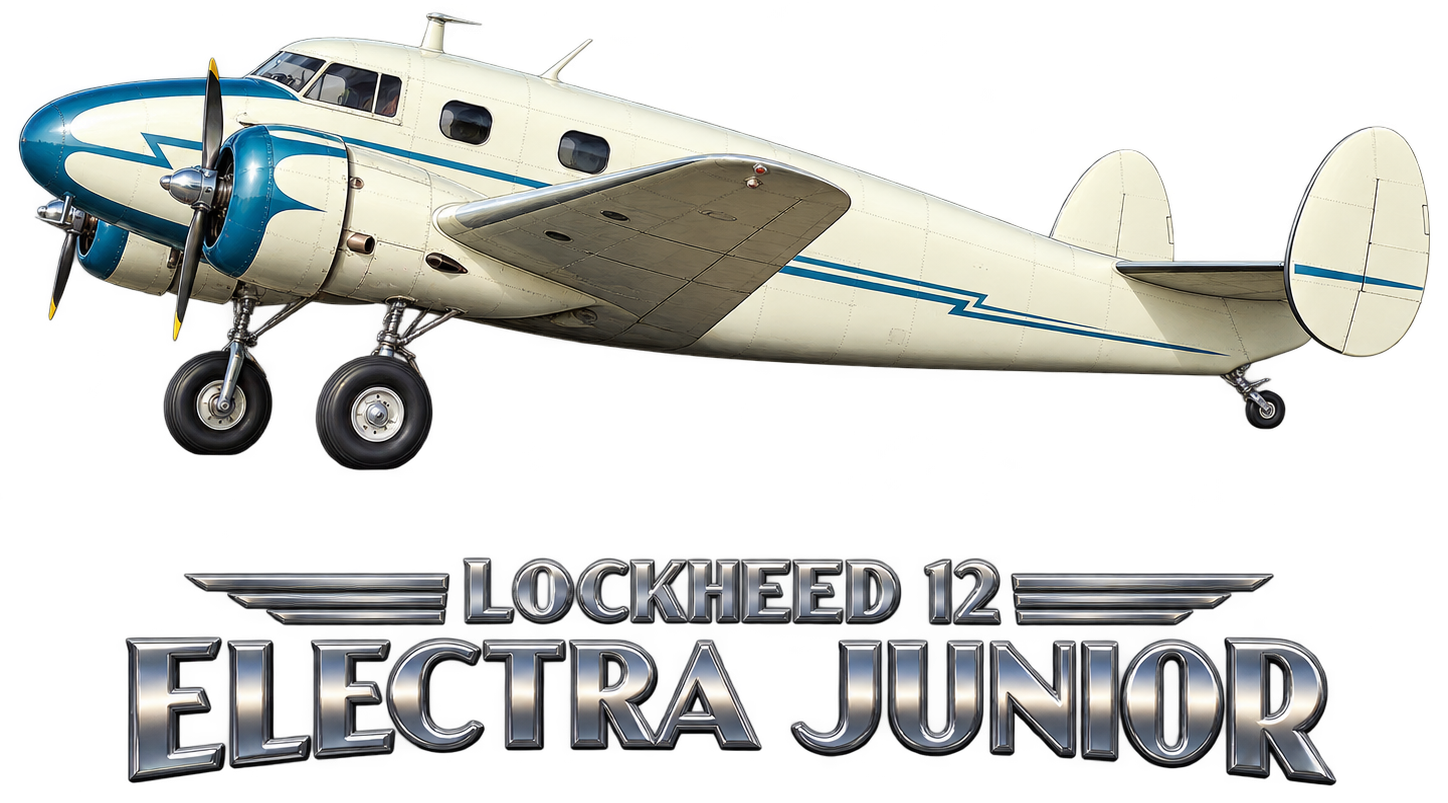

Illustrative image; it may differ from the actual aircraft.The Lockheed Model 12 Electra Junior, more commonly known as the Lockheed 12 or L-12, is an eight-seat, six-passenger all-metal twin-engine transport aircraft of the late 1930s designed for use by small airlines, companies, and wealthy private individuals. A smaller version of the Lockheed Model 10 Electra, the Lockheed 12 was not popular as an airliner but was widely used as a corporate and government transport. Several were also used for testing new aviation technologies.
Specifications
Figures for the 12-A variant, the most representative of the family
The type first flew in 1936 (90 years ago) · About 130 units built · Production ended in 1942
Figures for the type, not for this particular aircraft: each variant and each configuration changes something. They are shown in both systems used in aviation.
The story of the type
Design and development
After Lockheed had introduced its 10-passenger Model 10 Electra, the company decided to develop a smaller version which would be better suited as a "feeder airliner" or a corporate executive transport. At the same time, the U.S. Bureau of Air Commerce had also sensed the need for a small feeder airliner and announced a design competition for one. In order for a candidate to qualify for the competition, a prototype had to fly by June 30, 1936.
Lockheed based its candidate, which it named the Model 12 Electra Junior, around a scaled down Electra. It would carry only six passengers and two pilots but would use the same 450 hp (340 kW) Pratt & Whitney R-985 Wasp Junior SB radial engines as the main Electra version, the 10A. This made it faster than the Electra, with a top speed of 225 mph (362 km/h) at 5,000 ft (1,500 m). Like the Electra, the Model 12 had an all-metal structure, trailing-edge wing flaps, low-drag NACA engine cowlings, and two-bladed controllable-pitch propellers (later changed to constant-speed propellers). It also had the Electra's twin tail fins and rudders, which were becoming a Lockheed trademark. The landing gear was a conventional tail-dragger arrangement, with the main wheels retracting backwards into the engine nacelles; as was often the case with retractable gear of the period, the wheel bottoms were left exposed in case a wheels-up emergency landing was necessary, or the pilot simply forgot to deploy his novel landing gear.
As in the Electra and the Boeing 247, the Model 12's main wing spar passed through the passenger cabin; small steps were placed on either side of the spar to ease passenger movement. The cabin had a lavatory in the rear. Although the standard cabin layout was for six passengers, Lockheed also offered roomier, more luxurious layouts for corporate or private owners.
The new transport had its first flight on June 27, 1936, three days before the competition deadline, at 12:12 PM local time, a time deliberately chosen for the Model 12's number. As it turned out, the other two competition entries, the Beechcraft Model 18 and the Barkley-Grow T8P-1, weren't ready in time for the deadline, so Lockheed won by default. The "Electra Junior" name did not catch on in the way that the original Electra's name had. Most users simply referred to the aircraft by its model number, as the Lockheed 12.
The original Lockheed 12 version, with Wasp Junior engines, was the Model 12A. Almost every Lockheed 12 built was a 12A or derived from the 12A. There was also a Model 12B, using 440 hp (330 kW) Wright R-975-E3 Whirlwind radials, but only two of this model were built. Although Lockheed had also announced a Model 12F, powered by Wright R-760 Whirlwind seven-cylinder radials, and a Model 12M, powered by 290 hp (220 kW) Menasco six-cylinder inline engines, neither of these versions reached production.
Operational history
Even though the Lockheed 12 had won the government's feeder airliner competition, most of the airlines rejected it, and very few Lockheed 12s were used as airliners. One notable airline user was the newly renamed Continental Air Lines, which had a fleet of three Lockheed 12s that ran on its route between Denver, Colorado, and El Paso, Texas, in the late 1930s. Another was British West Indian Airways Ltd., which flew the Lockheed 12 on Caribbean routes in the Lesser Antilles during the mid-1940s.
The Lockheed 12 proved much more popular as a transport for company executives or government officials. Oil and steel companies were among the major users. A number were purchased as military staff transports by the United States Army Air Corps, which designated the type as the C-40, and by the United States Navy, which used the designation JO, or in one peculiar case, R3O-2. With the arrival of World War II, many civilian Lockheed 12s were requisitioned by the U.S. Army and Navy, Britain's Royal Air Force, and the Royal Canadian Air Force.
Two civil Lockheed 12s ordered by British Airways Ltd. were actually intended for covert military reconnaissance flights. Sidney Cotton modified these aircraft for aerial photography and in civilian guise, overflew and surreptitiously photographed many German and Italian military installations during the months preceding World War II. One of these G-AFTL has recently been returned to flight in the UK with its most recent display being at IWM Duxford Flying Days: VE Day on the 9th May 2026.
The main military user of the Lockheed 12 was the Royal Netherlands East Indies Army Air Force, which bought 36. Sixteen of these were the Model 212, a version created by Lockheed for training bomber crews, which had a .303 in (7.696 mm) caliber machine gun in an unpowered, partly retractable gun turret on top of the fuselage, a second .303-caliber machine gun fixed in the nose, and bomb racks under the wing center section that could hold eight 100 lb (45 kg) bombs. The other 20 aircraft were transport versions.
Several Lockheed 12s were used as technology testbeds. The U.S. National Advisory Committee for Aeronautics (NACA) bought two, adding a center vertical fin to each of them to test stability improvements.
Variants
Model 12A
Powered by two 450 hp (336 kW) Pratt & Whitney R-985 Wasp Junior SB radial engines. 70 built.
Model 12B
Like 12A, but powered by two 440 hp (328 kW) Wright R-975-E3 Whirlwind radial engines. This was a normal civil model, but the only two built (serial numbers 1228 and 1249) went to the Argentine Army.
Model 12-25
Last two civilian Model 12's produced (serial numbers 1293 and 1294), same as 12A but with Pratt & Whitney R-985 Wasp Junior SB3 engines.
All of these were based on the Model 12A and used the same engines.
C-40
U.S. Army Air Corps five-passenger transport; prototype (serial 1247) converted from company owned 12A, two others built, redesignated UC-40 in January 1943.
C-40A
U.S. Army Air Corps transport with mixed passenger/cargo interior; 10 built, plus one converted from C-40B, redesignated UC-40A in January 1943.
C-40B
U.S. Army Air Corps testbed for testing fixed tricycle landing gear; one built, converted to a normal C-40A in 1940.
C-40D
Eleven civil Model 12As impressed by the U.S. Army Air Forces in 1942, with standard six-passenger interior. Redesignated UC-40D in January 1943.
JO-1
U.S. Navy five-passenger transport; one built.
JO-2
U.S. Navy and Marine Corps six-passenger transport; five built.
XJO-3
U.S. Navy testbed with fixed tricycle gear, used for carrier landing tests and airborne radar trials; one built.
R3O-2
One civil Model 12A impressed by the U.S. Navy in 1941. (This was an anomalous designation, since the Navy had already used R3O for the Model 10 Electra.)
Model 212
Bomber trainer with bomb racks and gun turret atop aft fuselage; prototype (serial 1243, reserialed 212-13) converted from company owned 12A, 16 others built, one prototype and 16 for the Royal Netherlands East Indies Army Air Force.
Model 12-26
Military transport version of the Model 212; 20 built for the Royal Netherlands East Indies Army Air Force.
